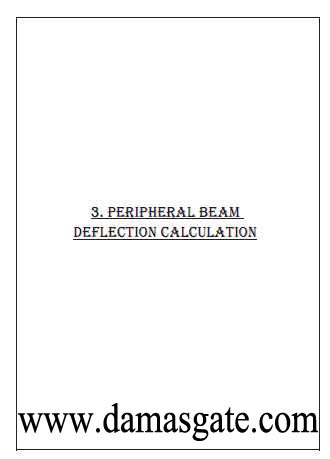

Deflection Calculation in Detail
The vertical deflections of beams is calculated as per Euro Code-2. The
Vertical deflection of ed
ge beam is calculated for the most unfavourable serviceability load
e Beams in five faces of clinic building is checked for deflection. i.e. north face,
east face,south face, west face curved portion and west face as shown previously.
The following pages shows the vertical deflection calculation of edge beams
in second mezzanine floor level ( since the loading is more in this floor due to presence of mechanical rooms
).Vertical deflection calculation for the beam which has maximum deflection on that face is shown here.
