Style3D cad.assyst Assyst CAD/CAM 20.17 All Modules
Assyst CAD/CAM 20.17 is a professional computer-aided design and manufacturing (CAD/CAM) software solution developed for the fashion, apparel, textile, and garment manufacturing industries. It is designed to support the complete workflow from garment design and pattern development through grading, marker making, production planning, and automated cutting.
The software provides an integrated environment for creating, modifying, managing, and preparing garment patterns for industrial production.
Main Applications

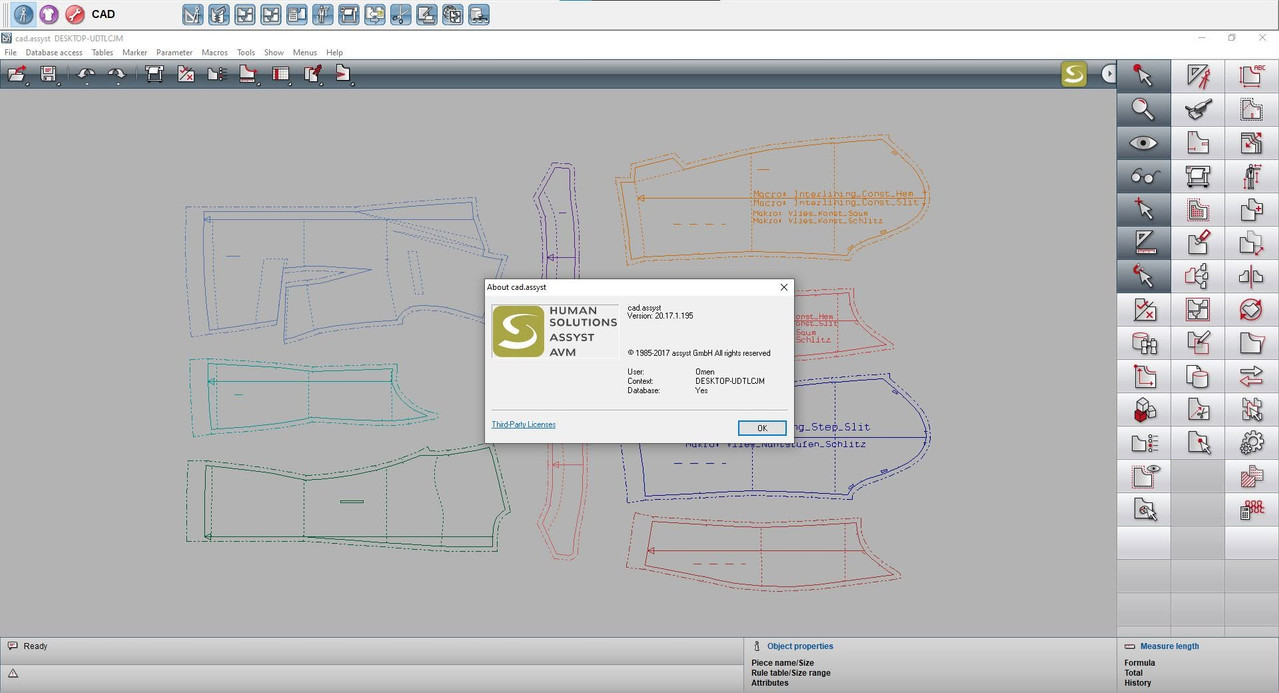

Pattern Design and Development
Assyst CAD allows designers and pattern makers to create and modify precise 2D garment patterns. It can be used to:
Create new garment patterns from scratch
Modify existing patterns
Add seams, notches, darts, pleats, and construction details
Create and manage pattern pieces
Perform precise geometric modifications
Check and correct pattern geometry
Prepare patterns for production
Pattern Grading
The system supports automatic and manual grading of patterns into multiple sizes.
It can be used to:
Create size ranges
Apply grading rules
Modify grading points
Check graded patterns
Generate production-ready size sets
This is particularly useful for industrial garment production where one design must be manufactured in many different sizes.
Marker Making and Fabric Optimization
Assyst includes professional marker-making functionality for arranging pattern pieces on fabric in order to achieve high material utilization.
The system can:
Automatically arrange pattern pieces
Optimize fabric consumption
Calculate marker efficiency
Consider fabric width and restrictions
Handle different sizes and quantities
Prepare markers for cutting-room production
Efficient marker planning can significantly reduce fabric waste and production costs.
Automated Cutting Preparation
Assyst CAD/CAM can prepare digital information required by industrial cutting systems.
Depending on the installed modules and production equipment, the software can generate data used by automated fabric cutting machines and other manufacturing equipment.
This allows the workflow to progress from:
Pattern → Grading → Marker → Cutting Data → Production
Production and Manufacturing
The software can be used to organize and prepare garment production data, including:
Production orders
Size and quantity information
Material information
Marker information
Cutting data
Production-related files
This makes it suitable for professional garment factories and industrial cutting rooms.
CAD/CAM Workflow
A typical Assyst workflow can be summarized as:
Garment Design
↓
Pattern Construction
↓
Pattern Modification
↓
Grading
↓
Marker Making
↓
Fabric Consumption Optimization
↓
Cutting Preparation
↓
CNC / Automatic Cutting
↓
Garment Production
2D and 3D Design
Assyst technology can also be integrated with modern 3D garment visualization and virtual product development workflows. This allows garments and patterns to be evaluated digitally before physical samples are produced.
3D workflows can help manufacturers and designers:
Visualize garments on virtual models
Check garment shape and proportions
Evaluate fit
Reduce the number of physical samples
Accelerate product development
Improve communication between designers, pattern makers, and manufacturers
Typical Industries
Assyst CAD/CAM is primarily used in:
Fashion design
Garment manufacturing
Textile production
Clothing factories
Pattern-making studios
Industrial cutting rooms
Automotive textile/interior manufacturing
Upholstery and technical textiles
Footwear and other pattern-based manufacturing applications
All Modules
An All Modules installation provides a comprehensive Assyst environment in which the available CAD/CAM functions can be used together rather than operating as a single-purpose pattern-design application.
Depending on the specific Assyst installation and licensed modules, the complete environment can cover areas such as:
CAD pattern construction
Pattern editing
Pattern grading
Marker making
Fabric utilization optimization
Production planning
Cutting preparation
Data management
3D garment development
CAD/CAM data exchange
Integration with industrial cutting systems
Main Advantage
The main advantage of Assyst CAD/CAM is that it connects design and pattern development directly with industrial manufacturing.
Instead of using separate programs for pattern creation, grading, marker making, and cutting preparation, Assyst provides an integrated professional workflow designed specifically for high-volume garment production.
