CAESAR II 15.0.0.0405 ISL is a world-leading pipe stress analysis software developed by Hexagon, designed for engineers working in oil & gas, power plants, petrochemicals, and heavy industrial projects. This advanced engineering solution enables precise modeling, analysis, and validation of piping systems under a wide range of real-world operating conditions.
Recognized as the industry standard for piping stress analysis, CAESAR II allows users to simulate and evaluate the structural behavior of piping systems subjected to thermal expansion, pressure, weight, seismic activity, wind, and other static and dynamic loads.
The software provides a comprehensive environment for building detailed 3D piping models, applying load cases, and verifying compliance with more than 35 international standards, including ASME B31 codes and global engineering regulations.
Core Functions & Capabilities
1. Advanced Pipe Stress Analysis
Performs static and dynamic analysis of piping systems
Evaluates stresses, displacements, forces, and moments
Supports nonlinear behavior such as friction, gaps, and support lift-off
2. Real-World Load Simulation
Analyzes effects of:
Temperature (thermal expansion)
Internal pressure
Dead weight
Seismic and wind loads
Water hammer and vibration
3. Code Compliance & Safety Validation
Ensures designs meet international standards (ASME, EN, ISO)
Generates detailed compliance reports for engineering approval
Widely used in EPC and industrial projects worldwide

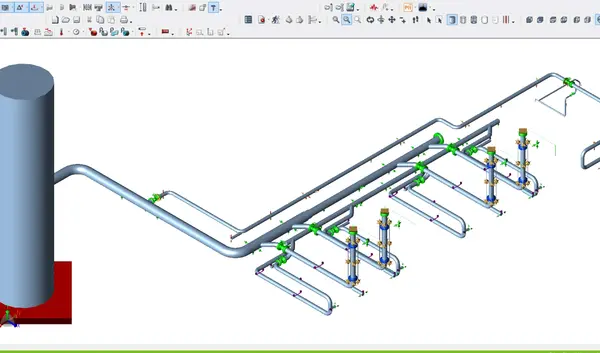

4. 3D Modeling & Visualization
Interactive graphical interface for building piping systems
Color-coded stress plots and animated displacement views
Helps identify weak points and optimize designs
5. Integrated Databases & Automation
Built-in libraries for:
Materials
Supports and spring hangers
Expansion joints and components
Automated error checking for accurate modeling
6. Dynamic & Specialized Analysis
Modal, harmonic, response spectrum, and time history analysis
Nozzle load evaluation and flange analysis
Buried pipe and soil interaction modeling
7. CAD Integration & Workflow Efficiency
Seamless integration with CAD tools like CADWorx and SmartPlant
Reduces design errors and speeds up engineering workflows
ISL (Intergraph Smart Licensing)
The ISL version uses cloud-based smart licensing, allowing flexible license management without hardware dongles. It simplifies deployment, enables remote access, and improves license control through an online portal.
(The experiment was not conducted properly.)
If you'd like to try it, you can download the program with activation.
Please share the result
863MB
Download
*
