IRIS Instruments Electre Pro 2020 build 02.09.01
The Electre Pro is a program allowing creation of 2D/3D-surface/borehole measurement sequences for the SYSCAL Pro-Switch resistivity-meters. It allows the user to create automatically (with an estimated maximum investigation depth specified by the user) or manually, some sequences of measurements with many possibilities:
The Electre Pro is a program allowing creation of 2D/3D-surface/borehole measurement sequences for the SYSCAL Pro-Switch resistivity-meters. It allows the user to create automatically (with an estimated maximum investigation depth specified by the user) or manually, some sequences of measurements with many possibilities:
Use of any type of standard electrode arrays (dipole-dipole, reciprocal Schlumberger-Wenner, pole-dipole forward & reverse, cross diagonal pole-pole.
Definition of the levels of investigation with the possibility of multi-spacing configuration for data quality improvement.
Optimization of sequences for higher acquisition speed (the optimization process can add some measurements (gapfiller quadripoles) that can be rejected after acquisition (by the PROSYS II software).

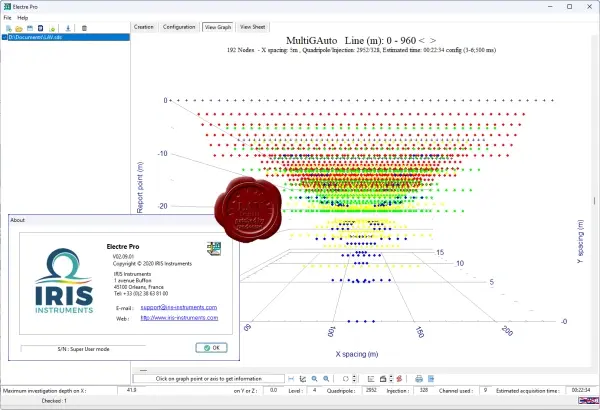

The Electre Pro allows also to import any type of sequences, manually created in a ″txt″ file, in the case of a specific user application. A graphical picture of the created sequence(s) is providedso as to visualize the distribution of the data points that will be measured. Animation can be run to visualize the successive quadripoles of measurement of the created sequence.
