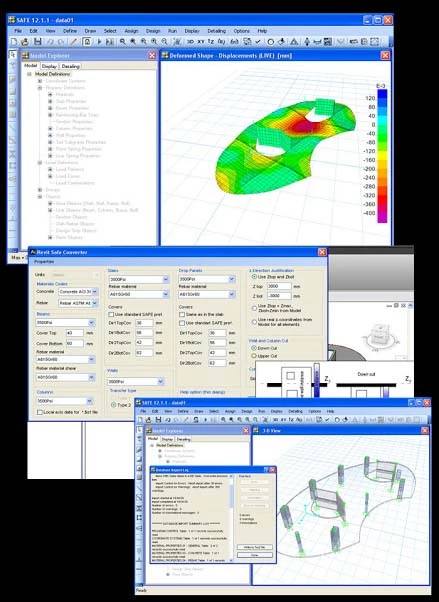

Autodesk Revit to CSI SAFE


Converter can transfer 3D model from Autodesk Revit (2009, 2010, 2011) to CSI SAFE 12.x.x.



http://www.youtube.com/watch?v=Z7y3AakqX5M
The Converter software is plug-in for Autodesk Revit. It works equally well for 64-bit and 32-bit platforms, and it requires Revit API, .Net framework 3.5 and Microsoft Excel preinstalled. (If you don't have MS Excel but you are interested in our software we can create personal assembly for your business, please contact us for more information)

Converter can transfer 3D model from Autodesk Revit (2009, 2010, 2011) to CSI SAFE 12.x.x.

Elements which only belong to adjacent floors can be converted at the same time. The following instances are converted:

Beams
Columns (with local axis rotation parameter)
Slabs and curved edge slabs (drop panels and slab differ) with openings
Walls and curved walls
Grids
Groups of elements

There is possibility to adjust boundary elevations for columns and walls.

Revit 3D model can be transfered to Excel spreadsheet or SAFE *.f2k file.

Default design parameters can be assign during conversion:

Concrete and rebar materials (Materials database can be easily reset or adjusted with using Microsoft Excel).
Cover layers for slabs and beams

Download

Autodesk Revit to CSi SAFE
Autodesk Revit 2010 -> CSI SAFE 12.x.x.
http://s19.alxa.net/s8/srvs1/PSD/MAX/....2.1_r2010.zip

Autodesk Revit 2011 -> CSI SAFE 12.x.x.
http://s19.alxa.net/s8/srvs1/PSD/MAX/....2.1_r2011.zip

Autodesk Revit 2012 (13) -> CSI SAFE 12.x.x.
http://s19.alxa.net/s8/srvs1/PSD/MAX/...2012_r2013.zip
