Revit 2022: Reinforcement Details Shop Drawings from A-Z

Step-by-Step Complete Shop Drawings (Reinforcement Details) for RC Building from A-Z using Revit Structure 2022



What you'll learn

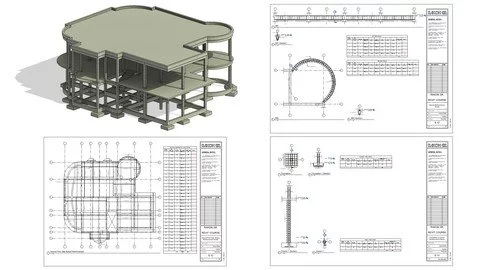

Create a professional reinforcement details shop drawings sheets
Create reinforcement for all members of the concrete building (foundation, column, beam, slab, and stair)
Create a bill of quantities (rebar schedules) for all members of the concrete building (foundation, column, beam, slab, and stair)
Print Reinforcement Details Sheets to PDF
Export Reinforcement Details Sheets to DWG

Description
Hello, welcome to

Revit Structure 2022: Step-by-Step Complete Shop Drawings (Reinforcement Details) for RC Building from A to Z

Divided into six main chapters, our course covers all aspects of Reinforcement Details, also it will be a very powerful reference for you as it will help you understand how reinforcement details work on the Revit, and you can also refer to it if you use another project to prepare high-quality and beautiful reinforcement details sheets

The use of reinforcement in Revit Structure will be explained through direct application on a simple concrete project, starting from adding reinforcement to the foundation, column, beam, slab, and stair, to produce professional structural shop drawings (Reinforcement Details).

To get the most out of the course, it is preferable to open Revit and start applying step by step with videos.

Finally, at the end of the course, you will be ready to start your own project using Revit and prepare all shop drawings (Reinforcement Details) professionally.

What you will learn in this course?

Edit Override Graphics in View(By Element & By Category)

Surface Patterns & Cut Patterns

Modify tools ( Align, Offset, Mirror - Pick Axis, Mirror - Draw Axis, Array, Rotate Move and Copy)

Join options ( Join Geometry, Unjoin Geometry, Switch Join Order )

Create Callout & Section

Edit Crop Region

Edit View Range

Edit Structural Plan Type (up&Down)

Edit Visibility/ Graphics

Structural Reinforcement Cover

Structural Reinforcement Rebar

Edit Bar Diameter

Rebar shape Browser

Edit Structural Rebar Properties ( Partition, Shape, View Visibility States, Dimensions and Image )

Structural Rebar Mode ( Edit Sketch)

Structural Rebar Set (Layout, Quantity, and Spacing)

Structural Rebar Presentation

Structural Rebar Constraints (Edit Constraints)

Structural Rebar Set Type (Varying Rebar Set)

Import Structural Rebar Image

Autodesk App Store (Instal Add-Ins to Revit )

ElementSelector (Twenty Two)

Annotate Tag (Aligned Multi-Rebar Annotation and Tag by Category)

Annotate Detail (Component Break-Line)

Annotate Dimension

View Create ( Schedules/ Quantities)

Structural Rebar Schedule

Schedule Properties (Fields, Filter, Sorting/Grouping, Formatting, and Appearance )

Fields (Rebar Number, Bar Diameter, Bar Length, Partition, Reinforcement Volume, Add Calculator Parameter and Image).

Filter ( Filter by Partition)

Sorting/Grouping ( Sort by Rebar Number)

View Create Sheet (Load Title Blocks)

Edit Title Blocks

Print (PDF)

Export (DWG)
