    FlowCode V4 for PIC + FlowCode V5 for PIC

    Flowcode is a development environment commercially produced by Matrix Multimedia for programming embedded devices such as PIC, AVR (including Arduino) and ARM using flowcharts instead of a textual programming language. It is currently in its sixth revision.

    Flowcode is a high level programming language dedicated to simplifying complex functionality such as Bluetooth, Mobile Phones Communications, USB etc. by using premade dedicated component libraries of functions. Flowcode is therefore ideal for speeding up software development times and allowing those with little programming experience to get started and help with projects.

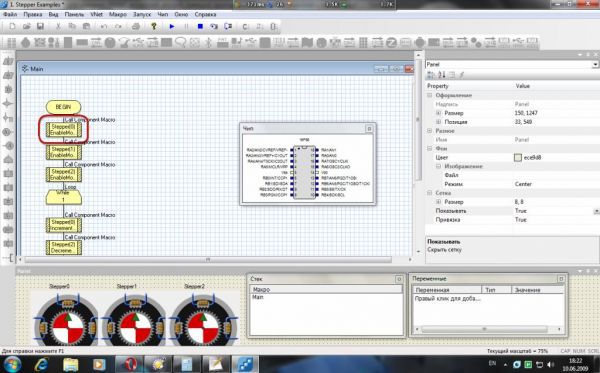

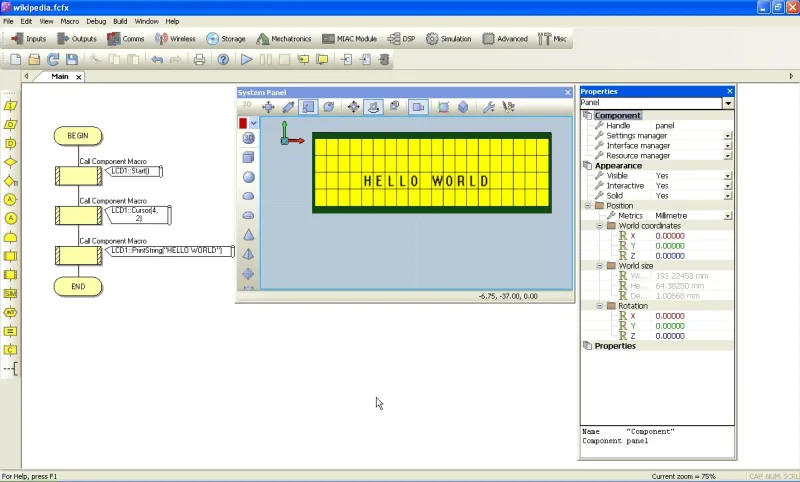

    Flowcode is flowchart based and components are simply dragged onto a chart before the program is compiled.

    Here is the official description for Flowcode V4 for PIC:

    One of the world's most advanced, yet easiest to use graphical programming languages for PIC microcontrollers.

    The great advantage of Flowcode is that it allows users with little or no experience to create complex electronic and robotic systems.

    Flowcode is a powerful language that uses flowcharts and macros to facilitate control of complex devices such as 7-segment LED displays, motor controllers, LCD displays and many others. Use of macros allows students and engineers to control complex electronic devices without getting bogged down in understanding the Details of programming.

    Flowcode is used in education as a means of introducing students to the concepts of programming.

    Flowcode is used in the industry for rapid development and for managing large projects.


    PIC(R) 18F Processor support, including BiPOM MINI-MAX/P18 board
    Flowchart objects: Input, Output, Decision, Delay, Loop, Connection, Formula, String, Interrupt, C Code, Macro
    Predefined components for RS232, I2C, SPI, Zigbee, CAN, IrDA, LIN, Bluetooth, TCP/IP and Web Server
    Predefined components for LCD, LED, 7-Segment, Keypad, Switch, ADC, EEPROM, PWM, Motor and many others
    Underlying C code for advanced capabilities, C Code Customization, Floating Point support.

    Flowcode software allows you to quickly and easily develop complex electronic and electromechanical systems. The graphical programming tool allows even those with little experience to develop complex electronic systems in minutes.

    Flowcode is one of the world’s most advanced environments for electronic and electromechanical system development. Engineers use Flowcode to develop systems for control and measurement based on microcontrollers, on rugged industrial interfaces or on Windows compatible personal computers.


    FlowCode V4 for PIC

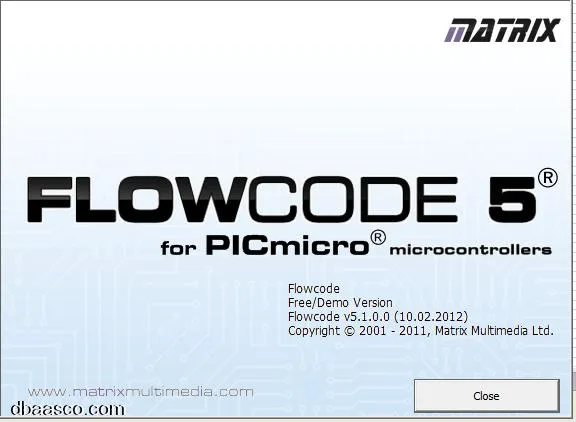

    FlowCode V5 for PIC
