    Oasys CADrebar

    CADrebar Benefits
    Detail reinforced concrete quickly and easily
    AutoCAD add-in
    Produce full drawings and bending schedules
    About This Software

    Get simple and fast AutoCAD concrete detailing and scheduling

    Why complicate things? CADrebar is beautifully simple. Easy to learn and use, the program provides fast concrete detailing and scheduling, supporting the BS8666:2005 British Standard.
    CADrebar: the ideal choice for concrete detailers

    CADrebar is so simple to learn that most detailers will be up to full speed within the first hour of using the software, without any training. This ease-of-use is just one reason why CADrebar is the program of choice for many concrete detailers.
    This software puts users in control of concrete detailing with single or multiple bar placements on all commands. The program produces industry standard schedules and enables users to create and schedule custom bar types.
    And because CADrebar uses standard AutoCAD attributed blocks (rather than custom objects) users can easily pass the output to organisations that do not use AutoCAD. So everyone can enjoy the benefits of working with CADrebar.
    Designed by concrete detailers for their own use, CADrebar is a cost effective tool for today’s detailing bureaux.


    "There is nothing particularly 'flashy' about CADrebar, its beauty lies in its simplicity, which still keeps much control in the hands of the experienced RC detailer. – AEC Magazine


    Used by many detailing bureaux
    Single or multiple bar placements on all commands
    Designed by concrete detailers for their own use
    Very easy to learn & use
    Produces industry standard schedules
    Can create and schedule custom bar types

    Click the 'Download now' button for installation requirements.

    Fast To Draw, Fast To Schedule: CADrebar is the preferred system of many detailing bureaux

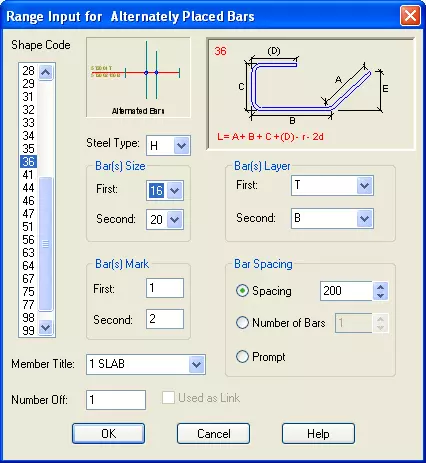

    Bar Placement: All bar placement commands offer both single and multiple bar range placement. Standard or custom mesh can be placed in a similar way to placing a bar range.
    Quick & Simple: Designed by concrete detailers for their own use. Uses standard AutoCAD attributed blocks (no custom objects) allowing you to freely pass your output to other non-AutoCAD based organisations.

    Easy to Learn: most detailers will be up to full speed within the first hour of using CADrebar and without any training.
    Checks: CADrebar checks for minimum bending dimensions of standard shape codes.

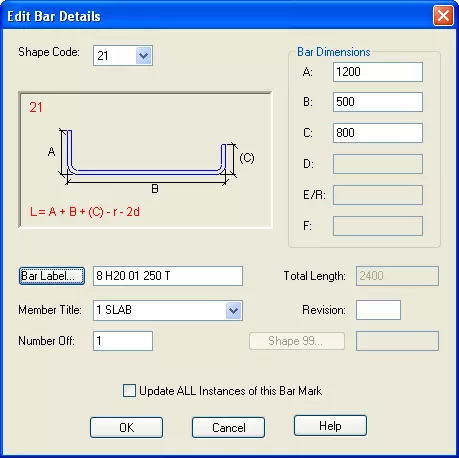

    Varying Bars or Tapered Ranges: These are placed in the same way as standard ranges. For full control, each bending dimension of a bar range can be independently varied.
    Find Bar Marks: CADrebar will zoom to the first Bar Label containing the bar mark. If there are more Labels with this mark, CADrebar allows you to step to the next and/or previous occurrences.

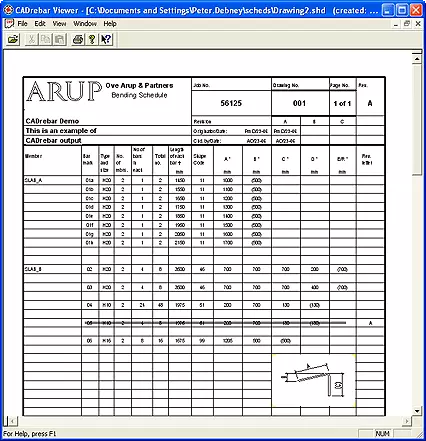

    Industry Standard Schedules: These can be created to show both bars and weights. The SHD output files can be printed using the freely distribute CADrebarViewer. Label attribute data is checked and total lengths are calculated. Errors are clearly identified both graphically and descriptively.
    Ranges: CADrebar groups ranges and utilises these groups when working with the Windows clipboard, allowing you to copy, move etc. ranges as a single object both in the current drawing and between drawings. Production drafting is further enhanced by allowing you to edit/modify single elements without breaking the group.

    SteelPAC: CADrebar's SHD files are easily read into SteelPAC for procurement and change management.

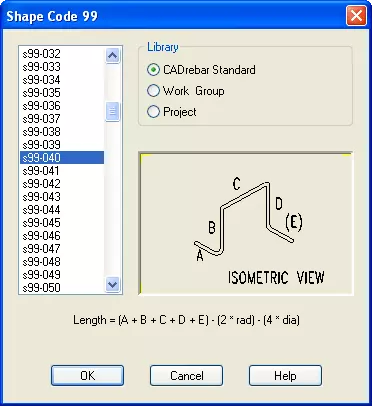

    Custom Bar Types: Create custom bar types (shape code 99) and insert a corresponding entry in the schedule. The total lengths of shape code 99's are automatically calculated. Formulae and required dimension definitions are easily created and allow for complex algebra where required.

    Bars in Section: Allows you to draw bars to scale in cross-section using either a pitch value or a number of bars. Show the bars as either solid or an outline circle.
    Tick and Tags: Using CADrebar these are very easy to place and edit.

    Configuration: All configuration files are simple ASCII text files providing control of parameters such as layer names, colours, sizes, total lengths, shape 99 images etc.
    Reducing Costs: CADrebar is the most cost effective system you will find.


    Medicine rar Password:1234
  • beton
    Free Membership
    • Nov 2018
    • 86

    • فلسطيني حتى النخاع
      Free Membership
      • Dec 2018
      • 589
      • 394
      • 134

      تحياتي من القدس الشريف
      تم التنزيل ولكن لم استطع التشغيل ، ارجو ان توجهنا اين نجد شرحا للامور التالية :
      1. البرنامج اصدار 2011 ، فهل يوجد احدث
      2. التحديث المرفق لا يعمل ولا نستطيع تركيبه حسب الصورة ادناه
      3. طريقة التفعيل
      4. المساعدة "help" لا تعمل لكي نعرف طريقة الاستفادة

      بارك الله فيك وزادك من علمه
      • Saadedin
        Thread Author
        • Sep 2018
        • 35927
        • 18,517
        • 2,819

        أخي العزيز مثل ما قلت البرنامج قديم واعذرني فأنا لاأستخدمه ولكن مرفق معه طريقة التفعيل على الأغلب يرجى التأكد من الملفات المرفقة مع البرنامج بارك الله بك
        • Eid Abdelaziz
          Free Membership
          • Nov 2018
          • 13

          Thank you
            Free Membership
            • Feb 2019

            شكرا بس هي الاداة اي اصدار من الاتوكاد بتدعم ؟
            بتدعم اتوكاد 2018 ؟
