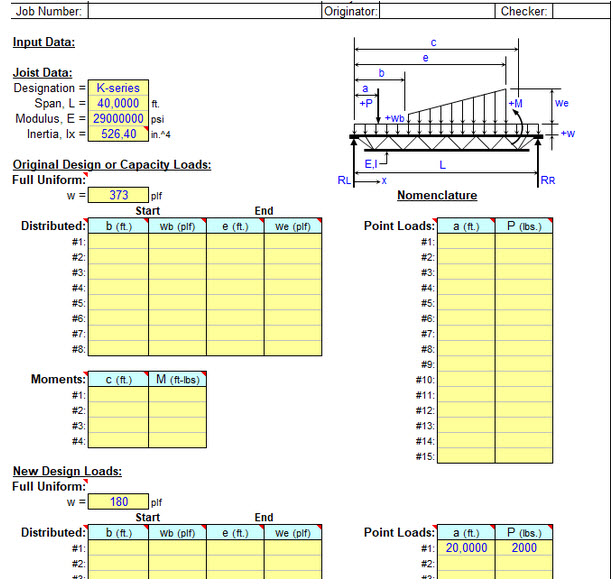

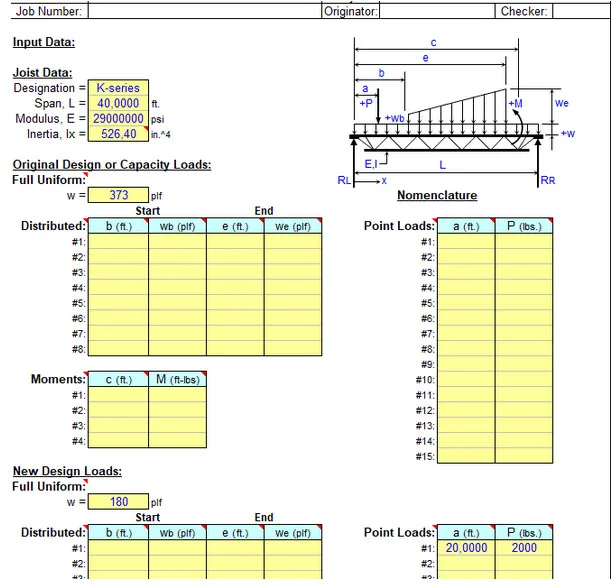

Joist Analysis Spreadsheet
Joist Analysis is a spreadsheet program written in MS-Excel for the purpose of analysis of steel joists considered as
simple-span beams subjected to virtually any type of loading configuration. Specifically, beam enc reactions as wel
as the maximum moments and ceflect ons are calculated.
Plots of both the shear and moment diagrams are produced, as well as a tabu ation ofthe shear, moment, slope, and
deflection for the ioist span.
There are two worksheets for se ecting K~series anc LH-series joists, and 2 worl-rsheets which are the SJI Standarc
Load Tables.
