Beam on Elastic Foundation Analysis Sheet

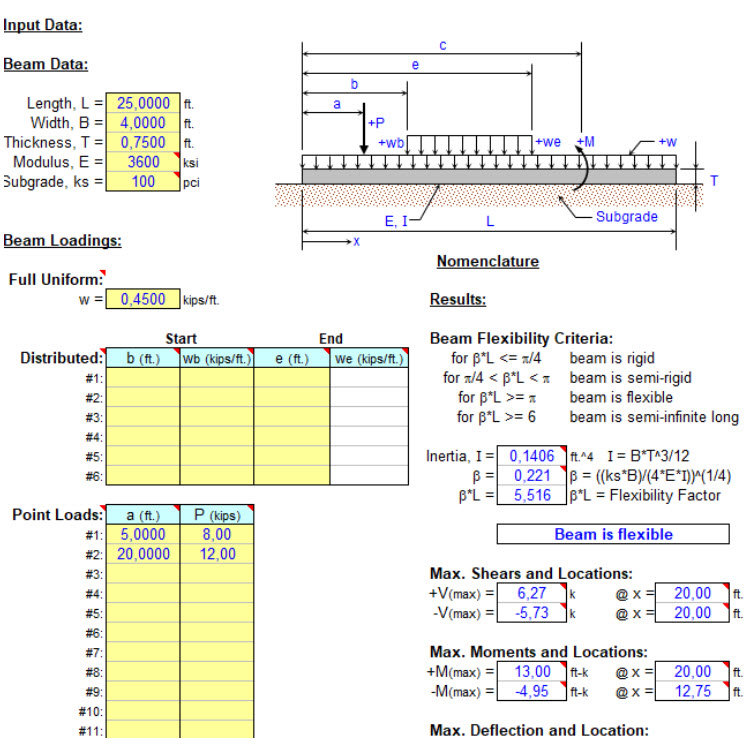

BOEF is a spreadsheet program written in MS-Excel for the purpose of analysis a finite length beam with free ends
supported continuously on an elastic foundation. This program is ideally suited for analyzing a soil supported beam, a
combined footing, or a strip of a slab or a mat. Specifically, the beam shear, moment, deflection, and soil bearing
pressure are calculated for 100 equal beam segments, as well as the maximum values. Plots of both the shear,
moment, and soil bearing pressure diagrams are produced, as well as a tabulation of the shear, moment, deflection,
and bearing pressure for the beam.
